TOPDRIVE ® ROZ1-K (AS) VFD EMC - 1.8/3 kV
Application
TOPDRIVE ROZ1-K (AS) VFD EMC is especially suitable for all use where the demand is for double shielded cables in connection with EMC. The cable is used in industrial- and building installations, in public buildings, power plants, and engine installations or anywhere where there is a demand for shielded, halogen free, 90° C cable. The cable may be laid directly in the ground.

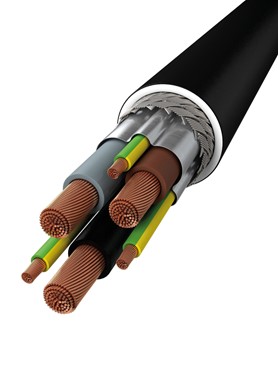

Construction
Conductor
Flexible electrolytic Cu, class 5
Insulation
XLPE
Conductor color
According to HD 308
Filling sheath
Flexible halogen free material
Screen
100% covering screen consisting of:
aluminum / polyester separator and tinned braided Cu screen
Outer sheath
Extra flexible halogen free compound, black
Technical data
Working temperature
-40 ºC to +90 ºC
Rated voltage
1.8/3 kV
Bend radius
10 x cable diameter
Technical comments
Current value A is meassured at 30 °C
July 2020: Changed name from TOXFREE to TOPDRIVE
Cca-s1a,d1,a1
Approvals
EN 50575, IEC 60502-1, IEC 60092-353, IEC 60092-353, IEC 60754-1, IEC 60754-2, IEC 60332-1, IEC 60332-3, IEC 61034-1, IEC 61034-2, UKCA, CE, RoHS
Bending radius 10 x cable diameter
Can be buried
Can lay in tubes
Environmentally friendly
Fire retardant acc. to IEC 60332-3
Flame retardant acc. to IEC 60332-1
Flexible
For industrial use
For use in cable trays
For use on ships
Halogen free
Impact resistance: medium
Max. working temp. +90° C
Meter marked
Min. working temperature -40° C
Outdoor use
Resistance towards oil and chemicals
UV-resistant
Water resistant
| SKU | EAN | CPR | Dimension (mm2) | Current Value (A) | Winding | Diameter (mm)* | Weight (kg/km)* |
|---|---|---|---|---|---|---|---|
| 65113120 | 5704403175123 | Cca-s1a,d1,a1 | 3x120+3G16 | 346 | D./Cut | 43,1 | 4560 |
| 65113150 | 5704403175130 | Cca-s1a,d1,a1 | 3x150+3G25 | 399 | D./Cut | 48,2 | 5670 |
| 65113185 | 5704403175147 | Cca-s1a,d1,a1 | 3x185+3G35 | 456 | D./Cut | 52,2 | 6895 |
| 65113240 | 5704403175154 | Cca-s1a,d1,a1 | 3x240+3G50 | 538 | D./Cut | 58,0 | 8955 |
