SCREENFLEX VC4V-K J, EMC
Application

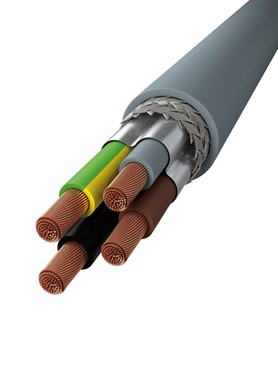

SCREENFLEX VC4V-K J EMC is used where a cable connection is needed between for instance a frequency converter and a motor. The cable is suitable for outdoor mounting.
Construction
Conductor
Electrolytic annealed Cu thread, class 5 acc. to IEC 60228
Insulation
Flexible PVC
Conductor color
Acc. to HD 308 / EN 50334
Screen
Screen coverage of 100% consisting of:
Alu/polyester tape plus drainwire
Tin-coated braided Cu screen
Outer sheath
Flexible PVC, grey
Technical data
Working temperature
-40º C to +70º C
Rated voltage
300/500 V (up to 1,5 mm2 cross section)
0,6/1 kV (from 2,5 mm2 cross section)
Bend radius
5 x cable diameter
Approvals
EN 50575, IEC 60332-1, IEC 60332-3, IEC 60502-1, IEC 60228, EN 50525, IEC 60364-5-52, CE, RoHS
Bending radius 5 x cable diameter
Can be buried
Can lay in tubes
Electromagnetically protected
Fire retardant acc. to IEC 60332-3
Flame retardant acc. to IEC 60332-1
Flexible
For industrial mobile use
For industrial use
For permanent outdoor installation
For use in cable trays
For use in switchboards
Max. working temp. +70° C
Meter marked
Min. working temperature -40° C
Outdoor use
Resistance towards oil and chemicals
UV-resistant
Water resistant
Withstands moisture
| SKU | EAN | CPR | Dimension (mm2) | Current Value (A) | Winding | Diameter (mm)* | Weight (kg/km)* |
|---|---|---|---|---|---|---|---|
| 970010003 | - | Cca-s2,d1,a3 | 3G1 | 10 | D./Cut | 6,6 | 70 |
| 970015003 | - | Cca-s2,d1,a3 | 3G1,5 | 16 | D./Cut | 7,7 | 95 |
| 970025003 | 5704403020263 | Cca-s2,d1,a3 | 3G2,5 | 30 | D./Cut | 9,4 | 145 |
| 970010004 | - | Cca-s2,d1,a3 | 4G1 | 10 | D./Cut | 7,0 | 85 |
| 970015004 | 5704403078134 | Cca-s2,d1,a3 | 4G1,5 | 16 | D./Cut | 8,4 | 120 |
| 970025004 | 5704403020270 | Cca-s3,d1,a3 | 4G2,5 | 25 | D./Cut | 10,2 | 180 |
| 970040004 | 5704403020300 | Cca-s3,d1,a3 | 4G4 | 34 | D./Cut | 12,6 | 275 |
| 970060004 | 5704403020317 | Cca-s3,d1,a3 | 4G6 | 43 | D./Cut | 14,4 | 360 |
| 970100004 | 5704403020324 | Cca-s3,d1,a3 | 4G10 | 60 | D./Cut | 17,5 | 570 |
| 970160004 | 5704403020331 | Cca-s3,d1,a3 | 4G16 | 80 | D./Cut | 20,1 | 815 |
| 970250004 | 5704403020348 | Cca-s3,d1,a3 | 4G25 | 101 | D./Cut | 24,5 | 1225 |
| 970350004 | 5704403020355 | Cca-s3,d1,a3 | 4G35 | 126 | D./Cut | 28,2 | 1655 |
| 970700004 | 5704403020379 | Cca-s3,d1,a3 | 4G70 | 196 | D./Cut | 37,5 | 3105 |
