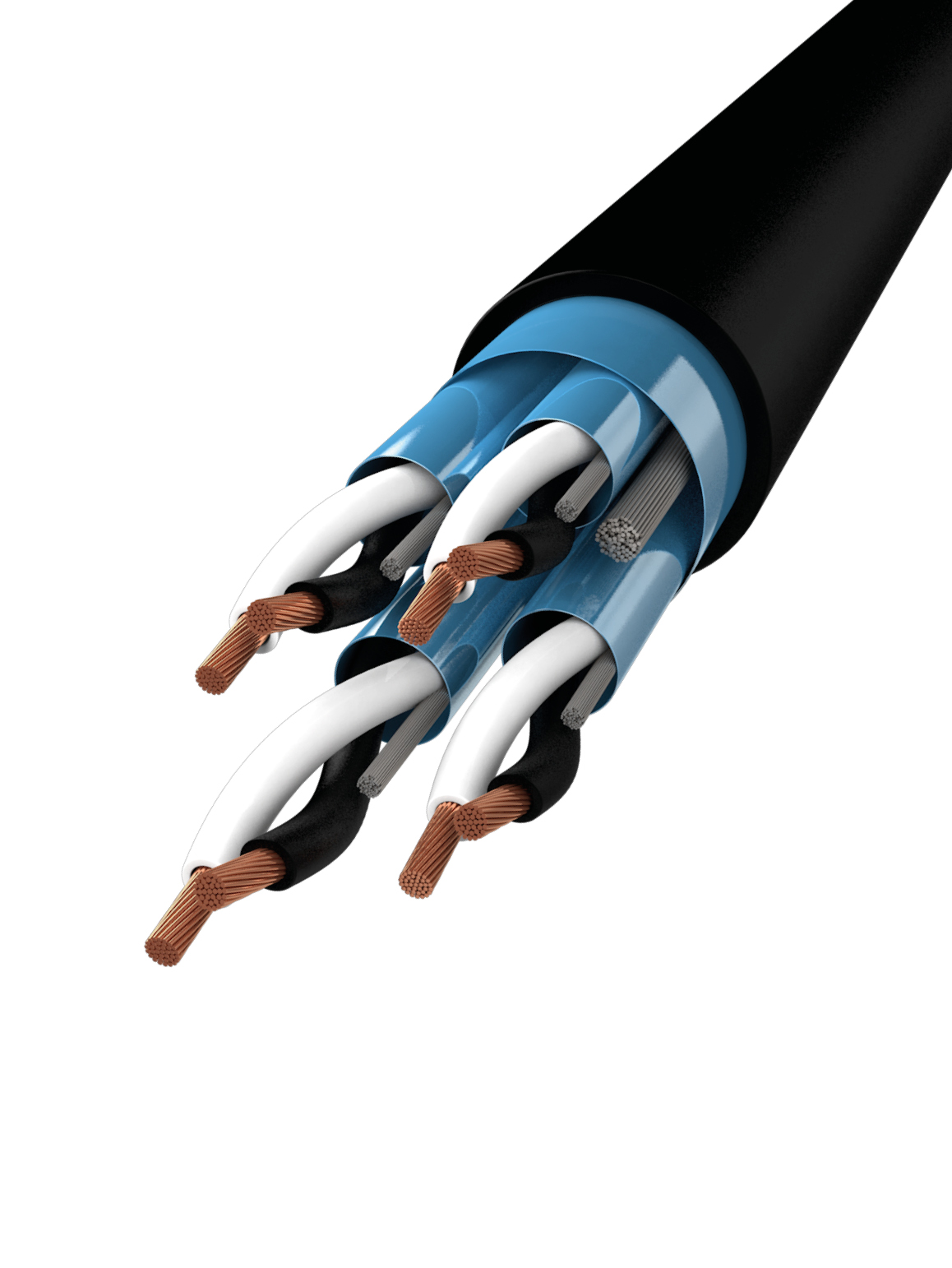

RE-2X(st)Y-PiMF shielded pairs - 300/500 V


RE-2X(st)Y-PiMF is used for process control and data processes, analog or digital transmission; instrumentation cables are used for a wide range of areas. Factories, refineries, petrochemical institutions, energy houses, natural gas pump stations, ect. are the general use of the cables.



Stranded Cu



Conductor color

Conductor A: black with numbering
Conductor B: white with numbering


Shielded pairs: AL/PES tape (0.60mm2 tinned Cu with drain wire)
Overall shielding: AL/PES tape (7x0.3mm2 tinned Cu with drain wire)

Outer sheath

PVC, black

Technical data

Working temperature

-30º C to +90º C

Rated voltage

300/500 V

Test voltage

Conductor/screen: 1000 V, conductor/conductor: 2000 V

Bend radius

7,5 x cable diameter

Technical comments

Insulation resistance: 5 GOhm x km
Operating capacity: 115 nF/km


IEC 60332-3-22, CE, RoHS
Bending radius 7,5 x cable diameter
Can be buried
Electromagnetically protected
Fire retardant acc. to IEC 60332-3
Max. working temp. +90° C
Outdoor use
SKU EAN Dimension (mm2) Current Value (A) Winding Diameter (mm)* Weight (kg/km)*
10470720050P 5704403117536 7x2x0,5 - D./Cut - -
10450802075 5704403059614 8x2x0,75 - D./Cut 16,1 310
10451602075 5704403059621 16x2x0,75 - D./Cut 21,1 530
10452402075 5704403059638 24x2x0,75 - D./Cut 25,5 760
