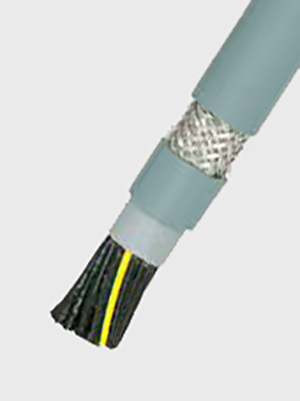

2-NORM-FLEX-CY UL/CSA - 600 V
Application
Command and control, multicore shielded cables.
These cables are suitable for control and command system employed for machine tools, assembly lines, connection between control panels and devices for generic industrial equipment. It is suitable to be in-stalled both in dry and damp environment, it shows oil resistance.
Construction
Conductor
Bare copper complying with DIN VDE 0295, cl. 5
Insulation
PVC
Conductor color
Numbered cores with yellow/green
Inner sheath
PVC
Screen
Tinned copper wire braid
Outer sheath
PVC
Colour grey RAL 7001
Technical data
Working temperature
HAR:
Fixed installation: -40 °C til +70 °C
Flexible installation: -5 °C til +70 °C
UL/CSA:
Fixed installation: -40 °C til +90 °C
Flexible installation: -5 °C til +90 °C
Rated voltage
HAR: 300/500 V
UL/CSA: 600 V
Bend radius
5 x cable diameter
Technical comments
Isolation resistance: ≥ 20 MΩ/km
Approvals
DIN EN 60332-1-2 VDE 0482 part 332-1-2:2005-06 and CSA FT 1, UL: AWM-Style 1012, Style 2587, VW-1, CSA: AWM I A/B, II A/B, FT1, DIN EN 50525-2-51:2012-01 and UL 2587, DIN EN 50525-2-51:2012-01, RoHs, CE
Bending radius 5 x cable diameter
Electromagnetically protected
Max. working temp. +70° C
Max. working temp. +90° C
Min. working temperature -40° C
Oil and grease resistant
Oil resistant
| SKU | EAN | Dimension (mm2) | Current Value (A) | Winding | Diameter (mm)* | Weight (kg/km)* | |
|---|---|---|---|---|---|---|---|
| - | - | 3G0,75 | - | D./Cut | 9,2 | 127 | |
| - | - | 5G0,75 | - | D./Cut | 10,3 | 184 | |
| - | - | 7G0,75 | - | D./Cut | 12,4 | 235 | |
| - | - | 3G1,0 | - | D./Cut | 9,5 | 145 | |
| - | - | 3G1,5 | - | D./Cut | 10,2 | 176 | |
| - | - | 4G1,5 | - | D./Cut | 11,4 | 235 | |
| - | - | 5G1,5 | - | D./Cut | 13,0 | 245 | |
| - | - | 7G1,5 | - | D./Cut | 14,8 | 314 | |
| - | - | 4G2,5 | - | D./Cut | 13,4 | 296 | |
| - | - | 5G2,5 | - | D./Cut | 14,4 | 367 | |
| - | - | 4G4 | - | D./Cut | 13,5 | 456 | |
| - | - | 5G4 | - | D./Cut | 14,6 | 532 | |
| - | - | 4G6 | - | D./Cut | 16,5 | 572 | |
| - | - | 4G10 | - | D./Cut | 20,3 | 988 | |
| - | - | 4G16 | - | D./Cut | 25,2 | 1662 | |
| - | - | 4G25 | - | D./Cut | 29,9 | 2591 | |
| - | - | 4G35 | - | D./Cut | 32,0 | 3277 | |
| - | - | 4G50 | - | D./Cut | 40,9 | 3960 | |
