Cable shoes TTA-K - cl. 5 & 6
Application
For use with class 5 & 6 flexible AL and CU conductors. Made from high mechanical and corrosion free aluminium with a tinned alloy and grease inside.
The connection takes place through the bolt with ATC-system/torque control.
The cable shoe can also be fitted with fastening bolts incl. aluminium alloy to avoid the differential expansion.
Construction

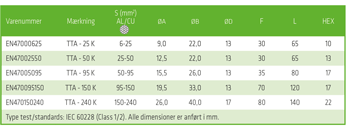

Technical data
Approvals
| SKU | EAN | Dimension (mm2) | Current Value (A) | Winding | Diameter (mm)* | Weight (kg/km)* | |
|---|---|---|---|---|---|---|---|
| EN47000625 | 5704403069309 | 6-25 | - | - | - | - | |
| EN47002550 | 5704403069323 | 25-50 | - | - | - | - | |
| EN47005095 | 5704403069330 | 50-95 | - | - | - | - | |
| EN470095150 | 5704403069347 | 95-150 | - | - | - | - | |
| EN470150240 | 5704403069354 | 150-240 | - | - | - | - | |
