Cable connectors MET-K - cl. 5
Application
Cable connectors for low- and medium voltage are available as couplers for multi-threaded and solid AL and CU conductors in class 5.
The clear advantages with cable connectors are that these can be fitted without the use of any special crimping tool, as well as the fact the they cover several mm2, for instance 25-50 mm2.
The cable connectors are made from a corrosion free aluminium with an alloy that allows both AL and CU cables/conductors/round/sector shaped.
Construction
Technical data
Rated voltage
Low- and medium voltage up to 36 kV
Approvals

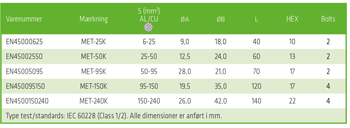

| SKU | EAN | Dimension (mm2) | Current Value (A) | Winding | Diameter (mm)* | Weight (kg/km)* | |
|---|---|---|---|---|---|---|---|
| EN45000625 | 5704403069811 | 6-25 | - | - | - | - | |
| EN45002550 | 5704403069835 | 25-50 | - | - | - | - | |
| EN45005095 | 5704403069842 | 50-95 | - | - | - | - | |
| EN450095150 | 5704403069859 | 95-150 | - | - | - | - | |
| EN450150240 | 5704403069828 | 150-240 | - | - | - | - | |
