X-VOLT ® FR-N20XA8E-AR - 12/20 (24) kV

Application

X-VOLT® FR-N20XA8E-AR is used for medium voltage installations or distribution networks both indoors and outdoors.
Ex. for the supply of transformer stations, infrastructure, wind turbines, solar parks, factory plants, data centers along with others.

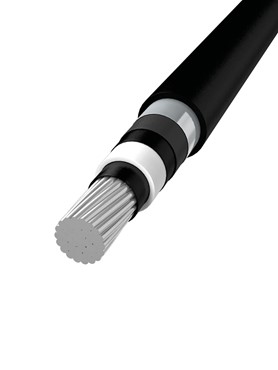

Construction

Conductor

Aluminium, cl. 2

Insulation

Cross-linked polyethylene insulation, type PR, natural color. Cross-linked in catenary line with nitrogen atmosphere.

Inner sheath

Insulation screen: Semi-conducting XLPE
Inner covering: Semi-conducting water-swellable tape
Radial water barrier: Aluminum/plastic laminate tightly attached to outer sheath

Screen

Strippable cross-linked semiconductor screen applied over insulation in a triple-extrusion process.
Aluminium foil.

Outer sheath

Polyolefin, black

Technical data

Working temperature

-15 °C to +90 °C

Rated voltage

12/20 (24) kV (Uo/U (Um))

Bend radius

15 x cable diameter

Eca

Approvals

IEC 60754, NF C 33-226, EN 60228,
Bending radius 13 x cable diameter
Can be buried
Can lay in tubes
For use in cable trays
Halogen free
Max. working temp. +90° C
Outdoor use
UV-resistant
Water resistant
SKU EAN CPR Dimension (mm2) Current Value (A) Winding Diameter (mm)* Weight (kg/km)*
10301050.FR 5704403190195 Eca 1x50 201 Drum 27,2 705
10301095.FR 5704403190201 Eca 1x95 338 Drum 29,4 895
10301150.FR 5704403190218 Eca 1x150 377 Drum 30,9 1060
10301240.FR 5704403190225 Eca 1x240 497 Drum 35,2 1445
10301300.FR 5704403204984 Eca 1x300 497 Drum 37,4 1670
10301400.FR 5704403190232 Eca 1x400 639 Drum 40,5 2005
10301500.FR 5704403190249 Eca 1x500 709 Drum 44,0 2355
10301630.FR 5704403190256 Eca 1x630 846 Drum 47,6 2865
